Birch Plywood for Cable Drum and Reel Flanges

Product Overview

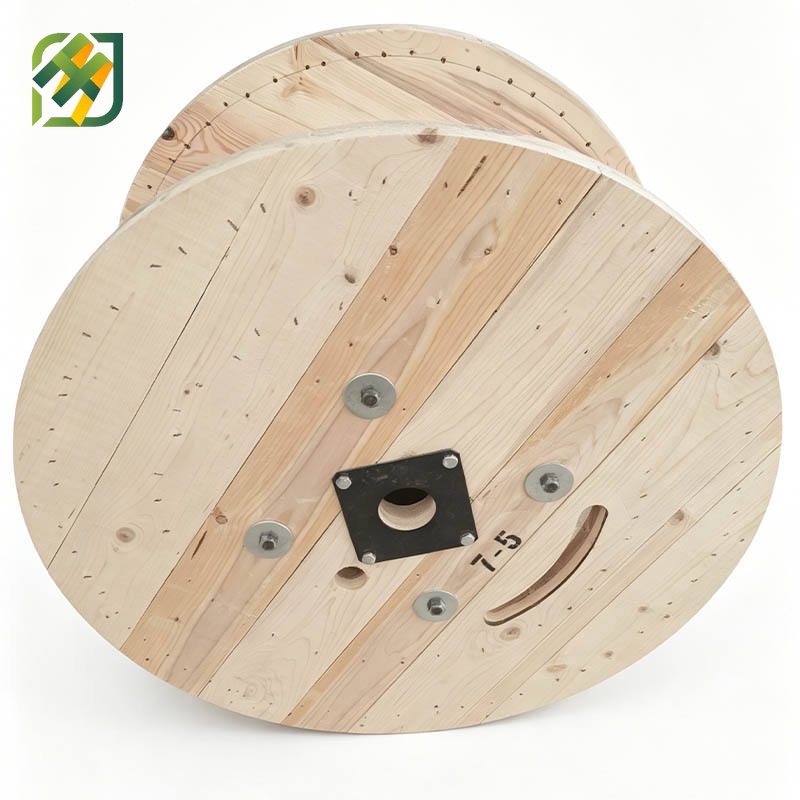

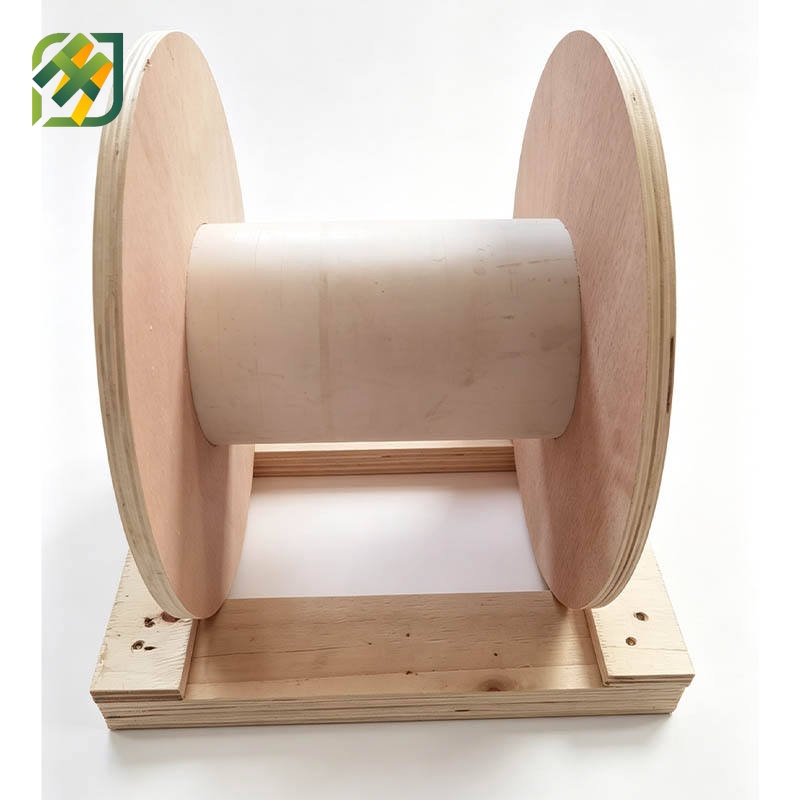

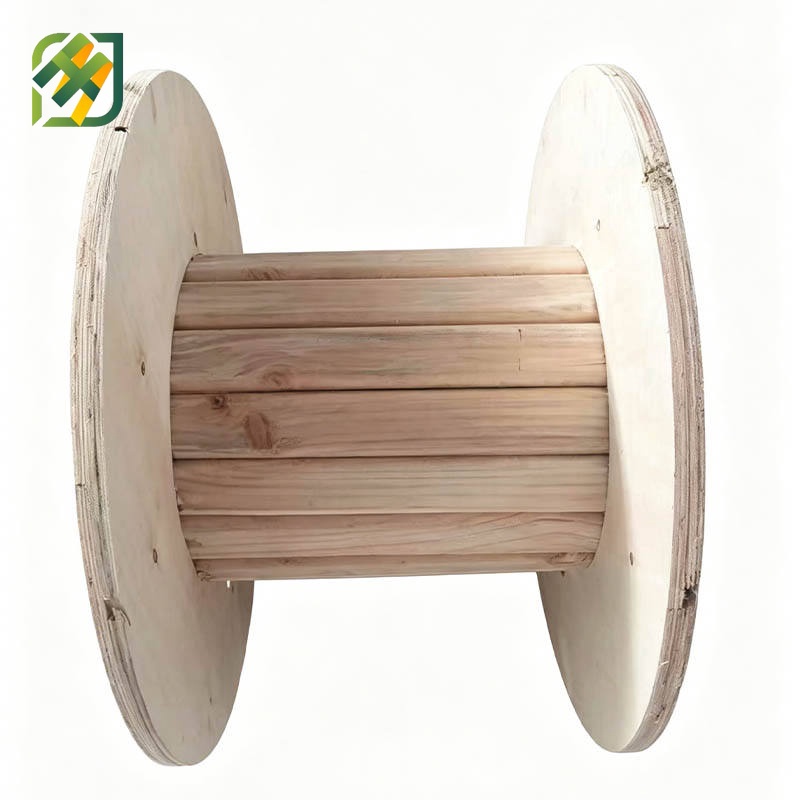

    Haoxin birch plywood is suitable for producing circular flanges used on cable drums, cable reels, wire spools and other industrial winding reels. The plywood flanges are installed on both sides of a reel to help contain and support cables, wires, ropes, hoses and other wound materials during winding, storage and transportation.

    The cross-laminated plywood structure provides practical dimensional stability, edge strength and machining performance. It can be processed into circular discs and is suitable for centre-hole drilling, bolt-hole drilling, edge finishing and other machining operations required for reel production.

    Compared with ordinary solid timber discs, a suitable multi-layer plywood construction can help distribute stress across different veneer directions and reduce the risk of splitting during machining, reel assembly and normal handling.

    Sheet size, thickness, plywood construction, face and back grade, core structure, glue type, sanding and packing can be customized according to the flange diameter, reel structure, intended material, expected load, handling method and customer drawings.

    This product is supplied as plywood material for cable drum and reel flange production. Final flange diameter, thickness, hole positions, load performance and assembly method should be determined by the reel manufacturer according to the application and technical design.

    Tell us your required sheet size, thickness, plywood construction, glue requirement, flange diameter, centre-hole diameter, bolt-hole arrangement, order quantity and destination port. Haoxin will provide a suitable quotation according to your industrial reel and cable drum requirements.

Product Specifications

Key Advantages

• Cross-laminated plywood structure: Multiple veneer layers arranged in alternating grain directions provide practical dimensional stability for cable drum and reel flange production.
• Reduced splitting risk: A suitable multi-layer plywood construction helps reduce splitting compared with ordinary solid timber discs during machining, assembly and normal handling.
• Stable circular processing: Suitable for cutting into circular flanges used on cable drums, cable reels, wire spools and industrial winding reels.
• Practical edge strength: Properly selected plywood construction provides stable edges for circular cutting, drilling, fastening and reel assembly.
• Suitable for precision machining: Can be processed by CNC equipment for circular cutting, centre holes, bolt holes and other customized shapes.
• Consistent panel thickness: Controlled plywood thickness supports balanced flange processing and repeatable reel production.
• Sanded birch surface: The birch veneer surface can be supplied sanded for further processing, printing, marking or finishing according to order requirements.
• Multiple industrial applications: Suitable for reels used to wind cable, wire, optical fibre cable, rope, hose, tubing and other suitable materials.
• Flexible thickness selection: Plywood thickness and construction can be selected according to flange diameter, reel structure, expected load and customer drawings.
• Customized bonding requirements: Glue type can be discussed according to storage conditions, application requirements and destination market.
• Efficient material utilization: Full plywood sheets can be arranged for circular flange cutting according to the customer’s production layout and processing plan.
• Export packing: Suitable pallet packing helps protect plywood surfaces, edges and corners during container transportation.

    The appropriate plywood thickness, core construction and glue type should be selected according to the flange diameter, reel design, cable weight, support structure, handling method and customer drawings.

Applications

    Haoxin birch plywood is designed as a panel material for producing circular flanges used on cable drums, cable reels, industrial spools and other winding equipment. The appropriate plywood thickness and construction should be selected according to the reel design, flange diameter, wound material, expected load and handling method.

• Electrical cable drums: Suitable for producing circular side flanges for reels used to wind, store and transport electrical cables.
• Communication cable reels: Can be used for reels carrying communication cables, data cables and other suitable cable products.
• Optical fibre cable reels: Suitable plywood constructions can be selected for reels used in optical fibre cable storage and transportation.
• Industrial wire spools: Can be processed into flanges for steel wire, copper wire, aluminium wire and other industrial wire reels.
• Rope reels: Suitable for reels used to organize, store and transport rope, cordage and similar wound materials.
• Hose and tubing reels: Can be used for selected industrial reels carrying flexible hose, conduit, plastic tubing and similar products.
• Packaging reels: Suitable for producing reel components used in industrial packaging, transportation and product delivery.
• Disposable reels: Different plywood specifications can be selected for single-trip and non-returnable reel packaging according to load and transport requirements.
• Reusable reels: Suitable plywood construction, glue and thickness can be discussed for reels intended for repeated handling, subject to the customer’s technical requirements.
• Customized industrial reels: Plywood sheets can be processed according to customized flange diameters, centre holes, bolt holes and reel designs.

    This product is supplied as plywood material for reel and flange production. Final flange dimensions, assembly method, permissible load and reel performance should be determined and verified by the reel manufacturer according to the customer’s technical drawings and intended application.

Processing and Customization Options

    Haoxin birch plywood specifications can be discussed according to cable drum, cable reel and industrial spool designs. Customers are recommended to provide technical drawings or detailed dimensional requirements before production and quotation.

• Sheet size: 1220*2440mm or customized plywood sizes can be discussed according to the circular cutting layout and material utilization plan.
• Plywood thickness: Thickness can be selected according to flange diameter, reel structure, expected load, support system and handling requirements.
• Plywood construction: Veneer arrangement, number of layers and core construction can be discussed according to the required panel performance and purchasing budget.
• Birch veneer grade: Face and back quality can be selected according to machining, printing, marking and appearance requirements.
• Glue requirement: Bonding options can be discussed according to indoor or protected use, storage conditions, transportation environment and destination market.
• Surface sanding: Sanded surfaces can be supplied for circular cutting, printing, marking, coating or further processing.
• Circular cutting: Plywood is suitable for CNC or other suitable equipment used to produce circular cable drum and reel flanges.
• Centre-hole machining: Centre-hole diameter should be confirmed according to the reel shaft, barrel and assembly structure.
• Bolt-hole arrangement: Hole diameter, quantity, position and spacing should be confirmed according to the customer drawing.
• Edge finishing: Circular flange edges can be sanded, rounded or otherwise processed according to reel manufacturing requirements.
• Printing and marking: Product codes, logos, dimensions, batch information or other markings can be discussed according to the selected supply form.
• Supply form: Full plywood sheets are supplied for further processing unless another supply arrangement is confirmed before production.
• Customized packing: Pallet dimensions, protective covering, labels, shipping marks and other export packing details can be discussed.

    Final dimensions, plywood structure, machining tolerances, glue type, surface quality and packing should be confirmed through technical specifications, customer drawings or approved samples before mass production.

Quality Control

    Haoxin focuses on sheet dimensions, plywood thickness, veneer construction, bonding quality, panel flatness, surface condition, edge quality and packing inspection. The inspection requirements should be confirmed according to the ordered plywood specification and customer drawings before production.

• Sheet size inspection: Panel length, width, squareness and dimensional tolerances are checked according to the confirmed order.
• Thickness control: Plywood thickness is checked to support consistent circular cutting, drilling and reel assembly.
• Veneer construction checking: The number of layers, veneer arrangement and plywood structure are checked against the confirmed specification.
• Core quality inspection: Core gaps, overlapping veneers and other visible internal conditions are checked according to the agreed plywood grade.
• Bonding quality: Glue type, glue spreading and pressing conditions are controlled according to the confirmed bonding requirements.
• Panel flatness: Sheets are checked for visible warping, twisting and deformation before packing.
• Surface quality inspection: Birch face and back veneers are checked for sanding quality, visible defects and damage according to the agreed grade.
• Edge condition: Panel edges and corners are checked for visible splitting, chipping and transportation damage.
• Machining compatibility: Panel thickness, flatness, core condition and edge quality are checked with consideration for circular cutting and drilling.
• Drawing confirmation: Flange diameter, centre hole, bolt holes, tolerances and other processing information should be checked against the latest customer drawing when applicable.
• Order specification checking: Sheet size, thickness, plywood structure, veneer grade, glue, sanding, labels and packing are checked against the confirmed order.
• Packing inspection: Export pallets, protective covering, straps, labels and corner protection are checked before shipment.

    Final flange load performance and assembled reel performance should be tested and verified by the reel manufacturer according to the reel structure, intended wound material, handling method and technical requirements.

Packing and Loading

    Haoxin birch plywood is packed with export standard pallet packing suitable for container shipment. Proper packing helps protect the plywood surfaces, edges and corners during warehouse handling, container loading and long-distance transportation.

• Export pallet packing: Birch plywood sheets are placed on suitable pallets for overseas transportation and container loading.
• Surface protection: Protective covering helps reduce scratches, dirt, moisture and handling damage on the birch veneer surfaces.
• Top and bottom protection: Protective panels or suitable covering materials can be placed above and below the plywood stack.
• Edge and corner protection: Protective materials help reduce chipping, splitting and impact damage during handling and transportation.
• Secure strapping: Steel straps or other suitable packing straps can be used to secure the pallets.
• Moisture protection: Plastic covering or another suitable protective layer can be used according to shipment and packing requirements.
• Product labels: Product name, sheet size, thickness, plywood construction, quantity, order number and other agreed information can be shown on package labels.
• Full-sheet packing: Full plywood sheets can be stacked and packed for further circular cutting and machining at the customer’s factory.
• Container loading: 20GP, 40GP and 40HQ loading options can be discussed according to sheet size, thickness, panel weight, pallet dimensions and order quantity.
• Loading calculation: Estimated sheets per pallet and container can be calculated after the final plywood specification and packing method are confirmed.
• Customized packing: Pallet size, protective covering, labels, shipping marks and other packing details can be discussed before production.

FAQ

What is a cable drum flange?

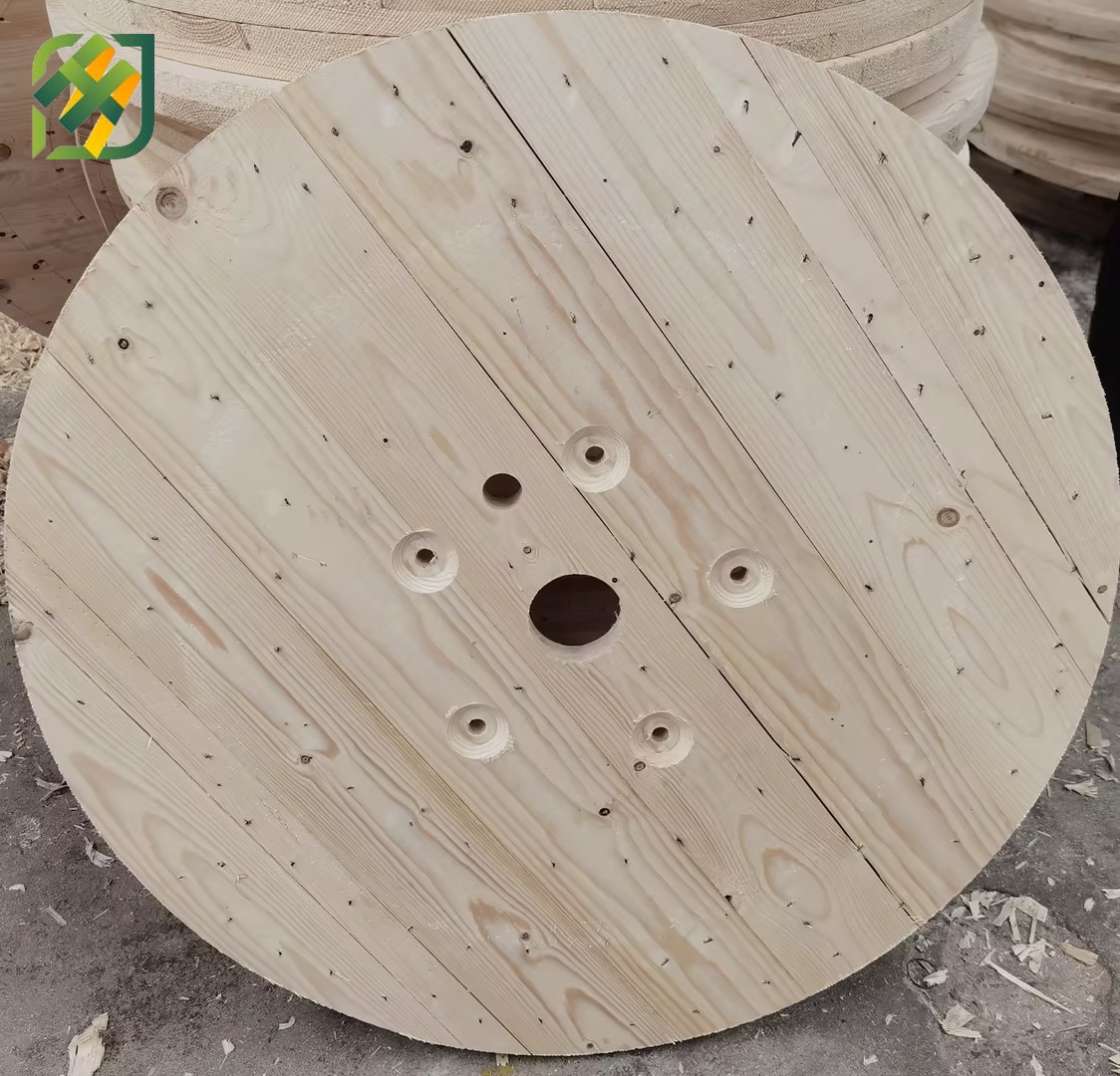

    A cable drum flange is a circular side panel installed on each side of a cable drum or reel. The flanges help contain and support cable, wire, rope, hose or other wound materials during winding, storage and transportation.

Why is birch plywood used for cable drum flanges?

    A suitable birch plywood construction provides practical dimensional stability, edge strength and machining performance. Its cross-laminated veneer structure also helps reduce splitting compared with ordinary solid timber discs.

What types of reels can use this plywood?

It can be considered for electrical cable drums, communication cable reels, optical fibre cable reels, industrial wire spools, rope reels, hose reels and other suitable winding applications.

What plywood thickness should I choose?

    The appropriate thickness depends on the flange diameter, reel structure, cable or wire weight, support system, handling method and expected load. Customers should provide technical drawings and application details before quotation.

Can the plywood be cut into circular flanges?

    Yes. The plywood is suitable for circular cutting using CNC equipment or other suitable processing machinery. The required diameter and machining tolerance should be confirmed according to the customer drawing.

Can centre holes and bolt holes be drilled in the plywood?

    Yes. Centre holes, bolt holes and other assembly holes can be processed with appropriate tools. Hole diameter, quantity, spacing and position should be confirmed through technical drawings.

Is the birch plywood waterproof?

    The moisture performance depends on the plywood construction, glue type, edge condition and exposure environment. It should not be described as completely waterproof unless the ordered product has corresponding test results and supporting documentation.

Can the plywood be used for reusable cable reels?

    A suitable plywood construction can be discussed for reusable reels. However, reuse performance depends on flange thickness, reel design, load, glue, assembly, handling, storage and transportation conditions.

Does Haoxin supply complete cable reels?

    This product page is primarily for full birch plywood sheets used in cable drum and reel flange production. Complete reels, finished circular discs or additional processing should only be quoted when the required supply form has been confirmed.

Can the plywood specification be customized?

    Yes. Sheet size, thickness, plywood construction, birch veneer grade, glue type, sanding, labels and export packing can be discussed according to the customer’s application and order requirements.

How can I get an accurate quotation?

    Tell us your required sheet size, thickness, plywood construction, glue requirement, flange diameter, centre-hole diameter, bolt-hole arrangement, expected load, order quantity and destination port. Haoxin will provide a suitable quotation according to your cable drum and reel requirements.

Send Your Inquiry

    Tell us your required sheet size, thickness, plywood construction, birch veneer grade, glue requirement, flange diameter, centre-hole diameter, bolt-hole arrangement, expected load, quantity and destination port. Haoxin will provide a suitable birch plywood quotation according to your cable drum and reel requirements.

    For a more accurate quotation, you can include the following details in your inquiry:

• Supply form: Full plywood sheets, finished circular flanges or another required form.
• Sheet size: 1220*2440mm or another required size.
• Plywood thickness: Required thickness based on the flange and reel design.
• Plywood construction: Required veneer structure, number of layers and core specification.
• Birch veneer grade: Required face and back quality for machining, printing or appearance.
• Glue requirement: Required bonding performance based on application, storage and transportation conditions.
• Flange diameter: Required external diameter of the circular flange.
• Centre hole: Required centre-hole diameter and tolerance.
• Bolt holes: Required hole diameter, quantity, position and spacing.
• Reel structure: Barrel diameter, reel width, assembly method and supporting components.
• Wound material: Cable, wire, optical fibre cable, rope, hose, tubing or another material.
• Expected load: Approximate cable, wire or other wound-material weight carried by each reel.
• Surface requirement: Sanded surface, printing, marking, coating or another finishing requirement.
• Order quantity: Sheets, pieces, pallets or container quantity.
• Packing requirements: Export pallet packing, labels, shipping marks or customized protection.
• Destination: Destination country, city or port for packing and shipment reference.

    Technical drawings are recommended when customized flange dimensions or machining requirements are involved. Haoxin will review the confirmed specifications and provide suitable product, packing and quotation information.
