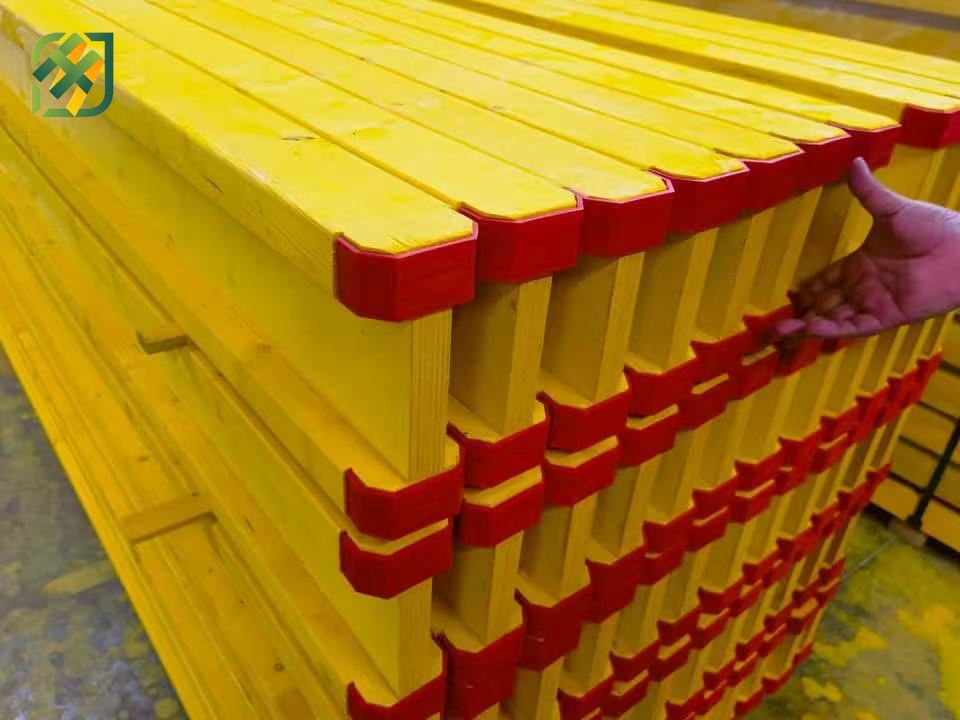

H20 Timber Beam for Slab Formwork Support Systems

Product Overview

Haoxin H20 timber beam is designed as a primary or secondary bearer in slab concrete formwork systems. It combines selected spruce flanges, a bleached poplar plywood web and boil-resistant phenolic adhesive.

Length, web thickness, coating, end protection, markings and packing can be discussed according to the slab layout and confirmed order.

Product Specifications

• Product: H20 Timber Beam for Slab Formwork
• Structure: Engineered I-shaped timber beam
• Beam Height: 200mm H20 beam-height class
• Flanges: Selected spruce wood
• Web: Bleached poplar plywood
• Adhesive: Boil-resistant phenolic adhesive
• Application: Concrete slab formwork support systems
• Position: Primary or secondary bearer according to the designed layout
• Options: Length, coating, markings and end protection
• Packing: Export bundles or pallet packing

Key Features and Applications

• Temporary slab formwork application
• Primary or secondary bearer layouts
• Spruce flanges and bleached poplar plywood web
• Selected lengths for different project layouts
• Export supply for contractors and distributors

Beam spacing, span, loads and support configuration should follow the slab thickness, formwork panel and project design.

Quality Control and Packing

Height, length, straightness, flange and web condition, bonding appearance, coating, beam ends and markings can be checked against the order.

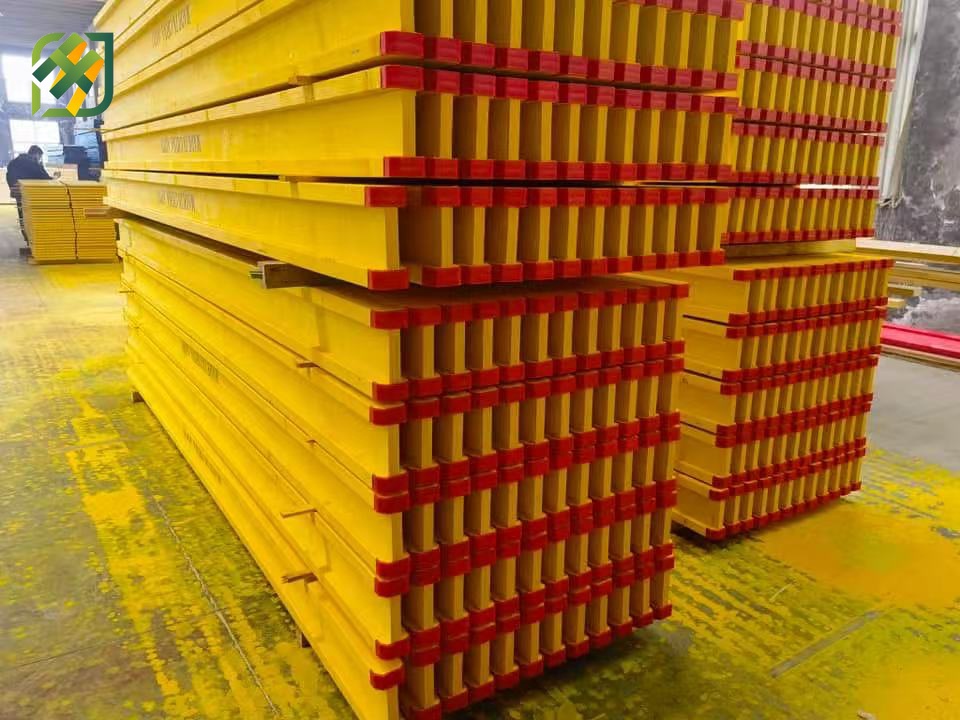

Beams are secured in export bundles or on pallets according to length, quantity and container-loading requirements.

FAQ

Can H20 beams be used as primary and secondary bearers?

They can be arranged in either position according to the engineered slab formwork design.

What information is needed for selection?

Provide the slab thickness, panel type, beam span, support spacing, beam length, quantity, drawings and destination port.

Send Your Inquiry

Tell us your beam length, web thickness, coating, end protection, quantity, application and destination port. Haoxin will provide a suitable quotation according to the confirmed specification.
